Also, if the oil holes in a full-groove-type setup are aligned exactly (oil hole in the bore saddle and oil hole in the cam bearing), oil pressure can potentially feed-back, momentarily preventing oil from traveling around the journal, which can minimize the necessary oil wedge.

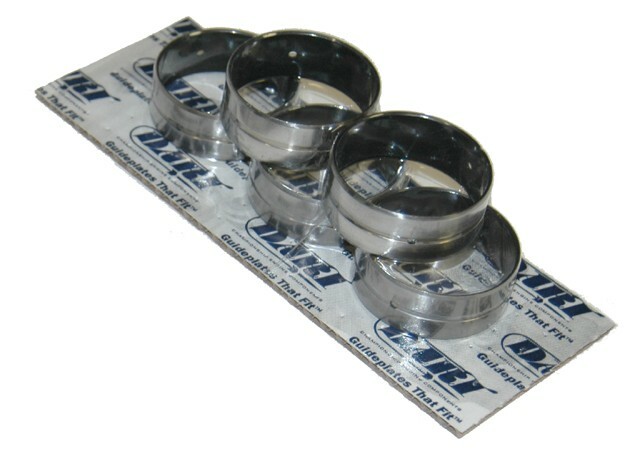

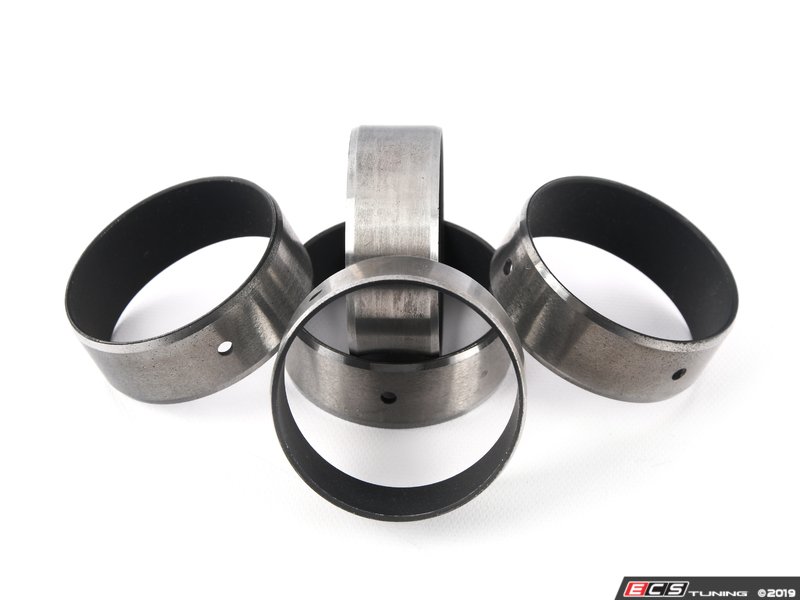

This more efficiently creates an oil film between the cam journal and its corresponding bearing. However, even if a full-circumferential groove is present, as we mentioned earlier, it is necessary to position the cam bearing's oil hole at a specific position (at approximately the 2:00 position as viewed from the block front) in order to allow cam rotation to create a slight oil "wedge" during operation. LS1 1997-2004 1st Design Early, CAM BEARINGS GM LS Series 4.8L 5.3L 5.7L 6.0L LS1 LS6 GEN III, VT VX VY COMMODORE 43.45 or 4 payments of 10. By comparison, the '92-97 Chevy LT1/LT4 features a full-circle oil groove, which might lead you to think that exact clock position of the cam bearing oil hole is not important (since oil will feed into the space between the bearing and cam journal and will travel along this groove, eventually feeding into the bearing's hole anyway). As a case in point, earlier small-block Chevy blocks might feature only an oil-feed hole that aligns with the main cap oil passage, in which case the cam bearing's oil hole must align with the saddle's oil hole.
